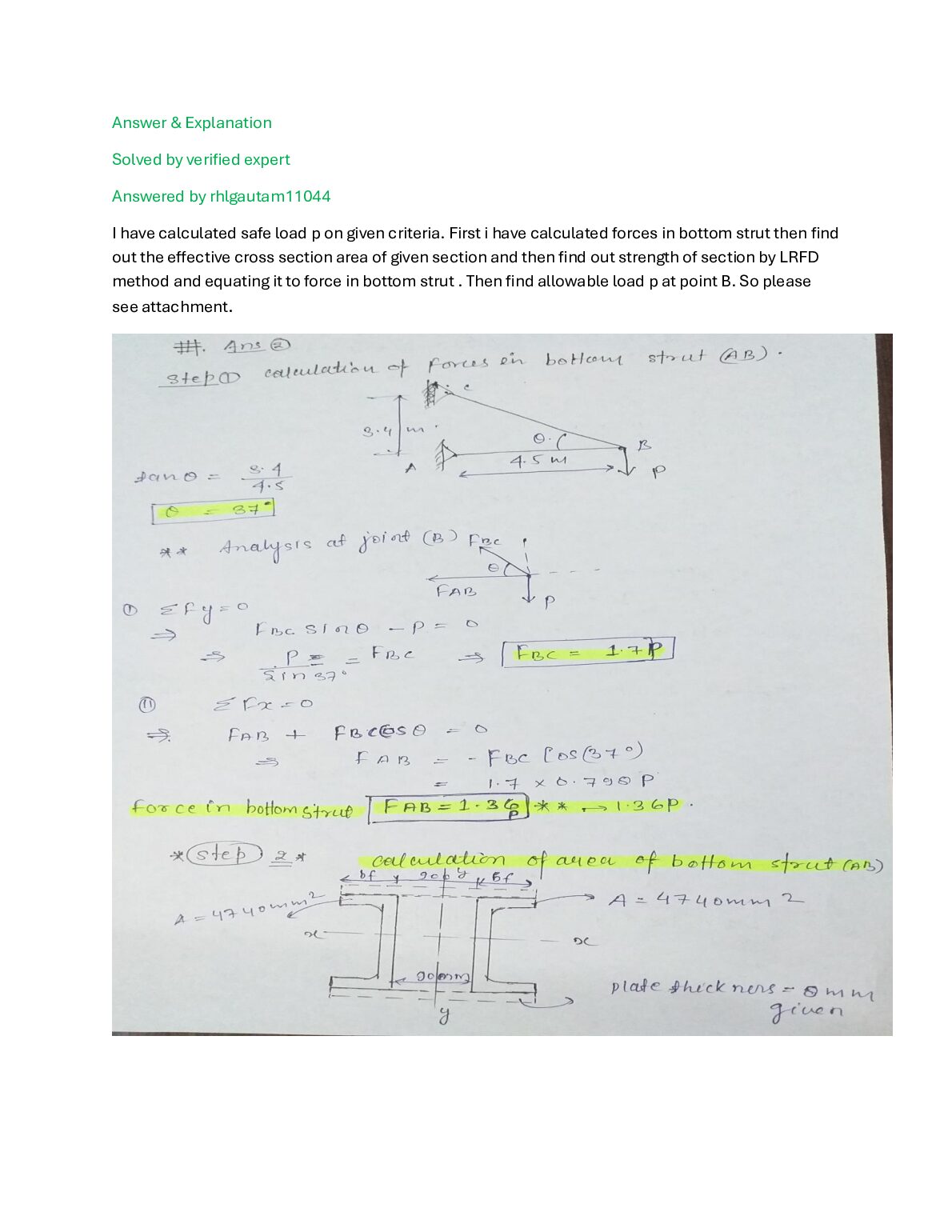

QUESTIONS & ANSWERS > Using A36 steel, determine the safe load P based on the capacity of the bottom strut with a cross- section as shown. Use LRFD. (tplate = 8 mm) 3.4m K 4.5m P 90 mm C10x25 A = 4740 mm2 x = 15.7 mm d = 254 mm Ix = 37.9 x 106 mm4 bf = 73.4 mm ly = 1.39 x 106 mm t = 11.1 mm tw = 13.4 mm
San Jose State University CE CE-134 Using A36 steel, determine the safe load P based on the capacity of the bottom strut with a cross- section as shown. Use LRFD. (tplate = 8 mm) 3.4m K 4.5m P 90 mm C10x25 A = 4740 mm2 x = 15.7 mm d = 254 mm Ix = 37.9 x 106 mm4 bf = 73.4 mm ly = 1.39 x 106 mm t = 11.1 mm tw = 13.4 mm ...[Show More]
